Radiators

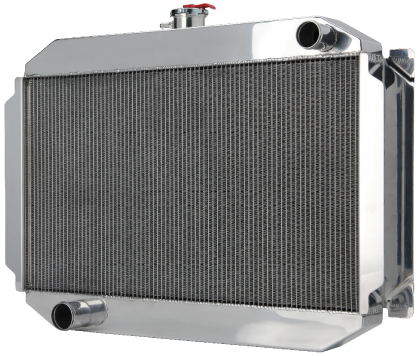

Adrad Radiators have a huge range of Performance alloy radiators to suit most popular performance vehicle applications including street car, 4x4, track, off-road racing, drag, drift, burnout and towing. Adrad offer the highest quality Australian made and internationally sourced performance alloy radiators, all backed by our Adrad warranty with Australia-wide support.

Need extreme cooling performance?

If you're upgrading the power on your car, you need to think about upgrading your cooling system too. Adrad have all the options available to meet the most extreme cooling demands.

14% Thicker Tube

Adrad radiator cores utilise a water tube that is around 14% thicker than that used by our competitors. This thicker tube increases the strength and durability of the tube which means it can be used not only for your irreplaceable muscle or classic car, but also in commercial vehicles both on-highway and off highway. As we have multiple tube profiles/sizes available, we are able to select a suitable combination of tube and fin profile to best suit your vehicle set up and application.

25% Thicker
Material for Header
Plates & Tanks

Some competitor radiators use only 1.6mm (or thinner) alloy tank and header material.

Adrad Australian manufactured full alloy radiators use high grade 2mm aluminium for header plates and tanks, giving you strength and durability to cope with the toughest situations.

Heavy Duty
Extruded Alloy
Water Tube

Typical high quality alloy tube has an overall wall thickness of .28mm. The thickness of the “heel & toe” (outward edges) on Adrad’s heavy duty tube is a massive 1.6mm. This provides substantially greater impact damage protection, making it ideal for use in 4x4’s, light trucks, industrial, mining & agricultural applications where “sand blasting” is likely.

Combining this heavy duty tube with Adrad’s hemmed fin (standard 8mm or 6mm SL fin) allows you to have the toughest alloy core without sacrificing performance.

Thickness Where it Counts

Radiator cores with Adrad Heavy Duty Extruded Water Tube has proven durability in the punishing conditions of Australasian rallies and the world famous Dakar Rally. That’s why it’s also used by Harrop Engineering for use in water-to-air intercoolers for supercharged engines.

The Difference is in the Detail

Adrad's high polish option is carefully performed by hand to produce a high quality mirror-like finish.

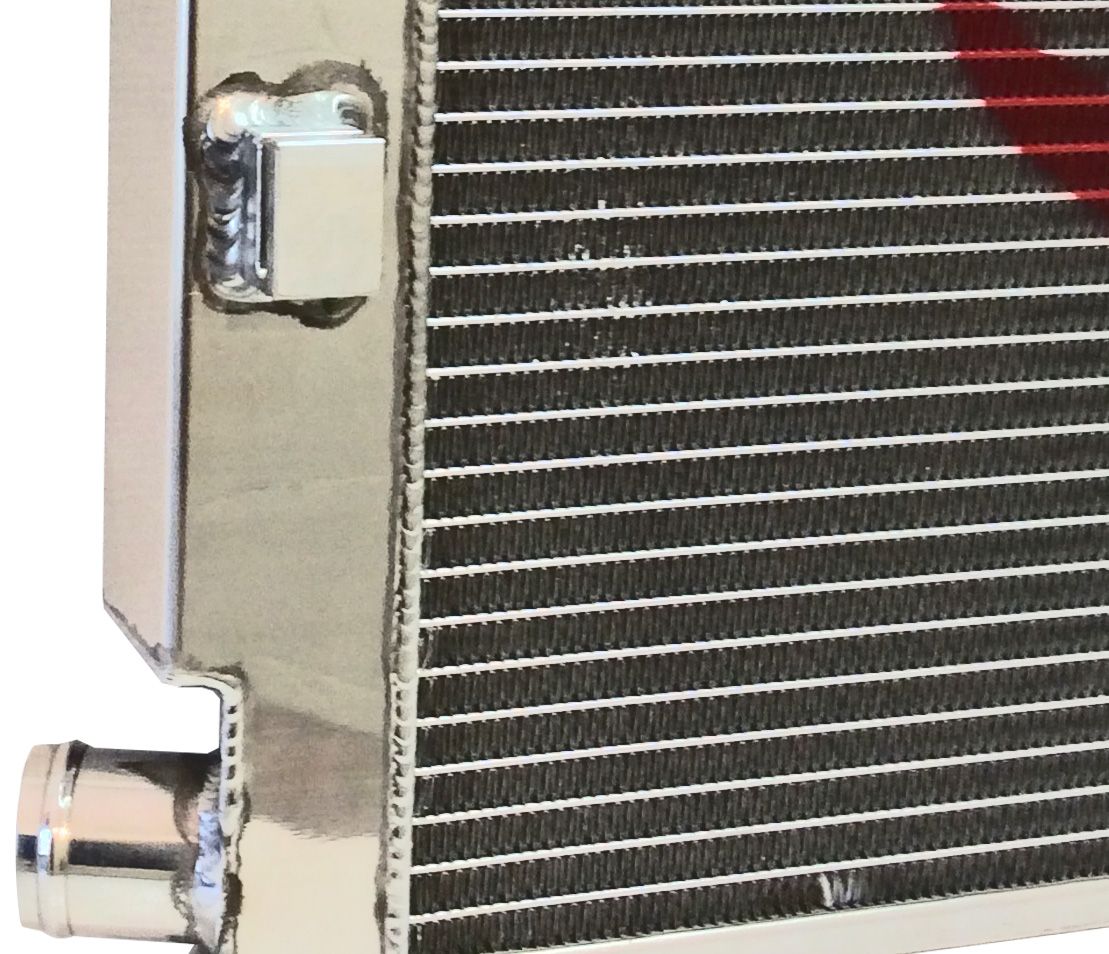

Local competitor machine polish by comparison is uneven and misses areas, such as around welds.

Fin (Core) Types

STANDARD FIN

Standard - 8mm

Australian made 8mm standard fin is hemmed for extra impact protection and durability. The industry standard for decades, radiator cores with standard 8mm fin provide good cooling in normal city and highway conditions.

SL FIN

SL - 6mm

For many years Adrad’s 6mm SL louvred, hemmed fin cores have been the performance benchmark providing high performance cooling, superior strength and light weight. Precision made, Adrad’s fin to tube bonding is class leading, providing optimal heat transfer from tube to the louvred hemmed fin for maximum heat dissipation.

XF FIN

XF - 4.75mm

As car manufacturers strive for performance and efficiency gains, cooling systems need to be more compact, yet provide high levels of cooling performance. Adrad’s XF cores, with low profile 4.75mm high louvred fin, allow tubes to be closer together so more tubes can be placed in a fixed area, providing the highest level of cooling performance.

What Makes One Core Better Than The Other?

Std SL XF

The reason is fairly simple; the more tubes you fit along the radiator core's width, the more cooling performance you can achieve

Identifying the Correct Part

Many Adrad Performance radiators can be specified with a number of options including transmission (manual/auto), finish (polish level) and fin type (Standard, SL or XF). The example pictured explains how to determine the complete radiator part number for your vehicle and preferred options
